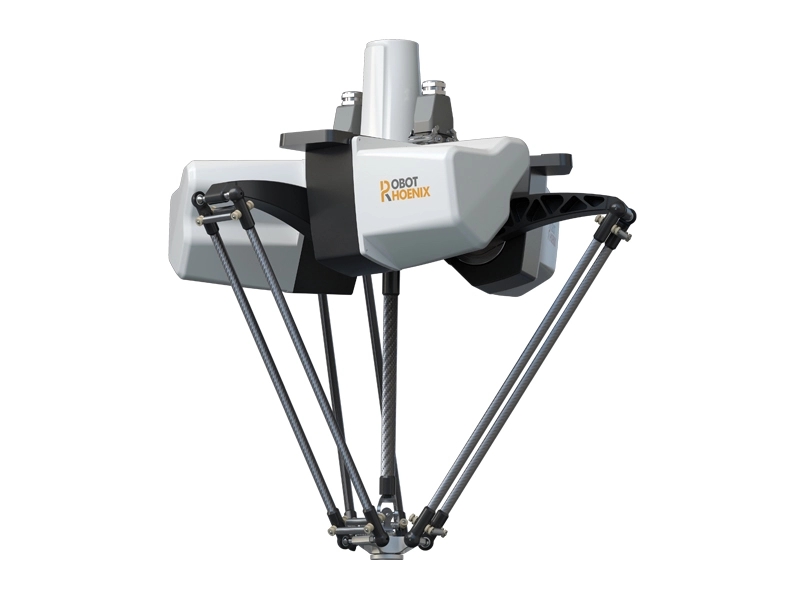

BAT800-S3 Delta Robot

Get A Quote
delta robot pick and place

BAT800-S3 delta robot is a 4-axis parallel robot with a rated payload of 3kg, which has the characteristics of high speed and precision, small footprint and strong rated power. It contributes to a flexible production during high precision and high speed manufacturing lines.

Specification of BAT800-S3 Delta Robot


Robot ModelBAT800-S3
Rated Load3kg
Working Space Diameter800mm
Number of Axles4
Repeated Positioning Accuracy0.08mm
Repeated Positioning Accuracy of four Axis Angle (°)0.2°
Maximum Speed6m/s
Power Supply VoltageAC380V±10％, 50/60HZ
Rated Power3.2kW
Protection GradeIP54
Weight120kg
Robots

Features of BAT800-S3 Delta Robot Manipulator

  • The maximum payload is 3kg

  • The working space diameter is 800mm

  • The repositioning accuracy is 0.08mm

  • The maximum speed is 6m/s

  • The rated power is 4.25kW

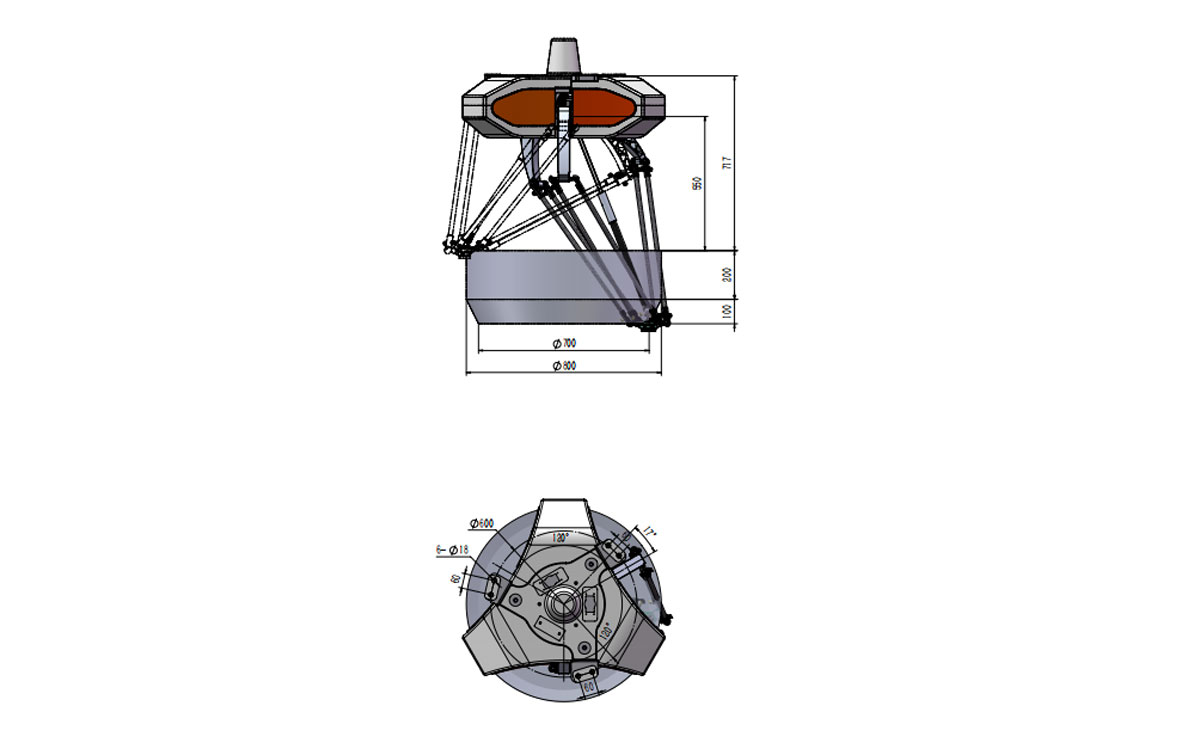

Technical Drawing of BAT800-S3 Delta Robot

Technical Drawing of BAT800-S3 Delta Robot
