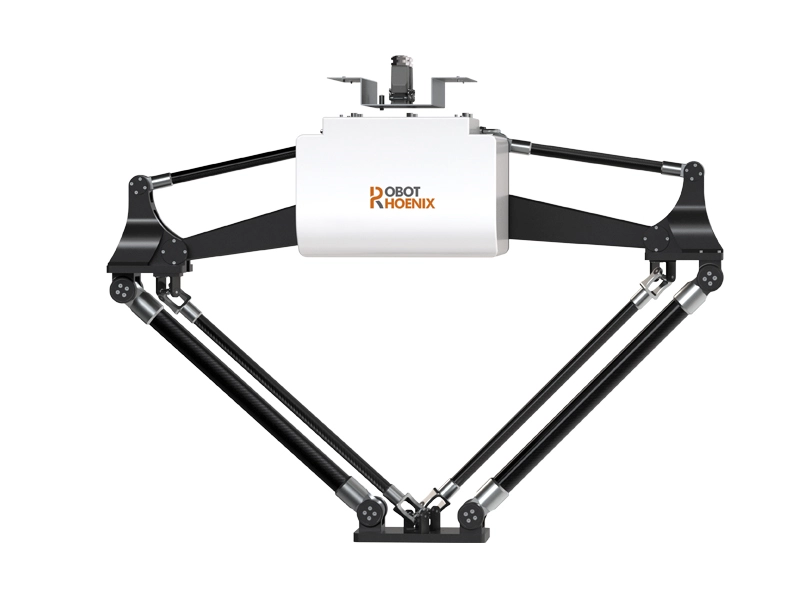

BAT1300B-S50 Heavy Load Delta Robot

Get A Quote
industrial delta robot

Bat1300B-S50 delta robot is a 2-axis parallel robot with a rated payload of 50kg, which has the characteristics of high speed and precision, small footprint and strong rated power. This type of industrial delta robot wins favor of industrial robot supplier and contributes to a flexible production during high precision and high speed manufacturing lines.

Specification of BAT1300B-S50 Heavy Load Delta Robot


Robot ModelBAT1300B-S50
Rated Load50kg
Working Space Diameter1300mm
Number of Axles2
Repeated Positioning Accuracy0.02mm
Repeated Positioning Accuracy of four Axis Angle (°)/
Maximum Speed2m/s
Power Supply VoltageAC380V±10%, 50/60HZ
Rated Power4kW
Protection GradeIP54
Weight200kg


Features of BAT1300B-S50 Heavy Load Industrial Delta Robot

  • The maximum payload is 50kg

  • The working space diameter is 1300mm

  • The repositioning accuracy is 0.02mm

  • The maximum speed is 2m/s

  • The rated power is 4.8kW

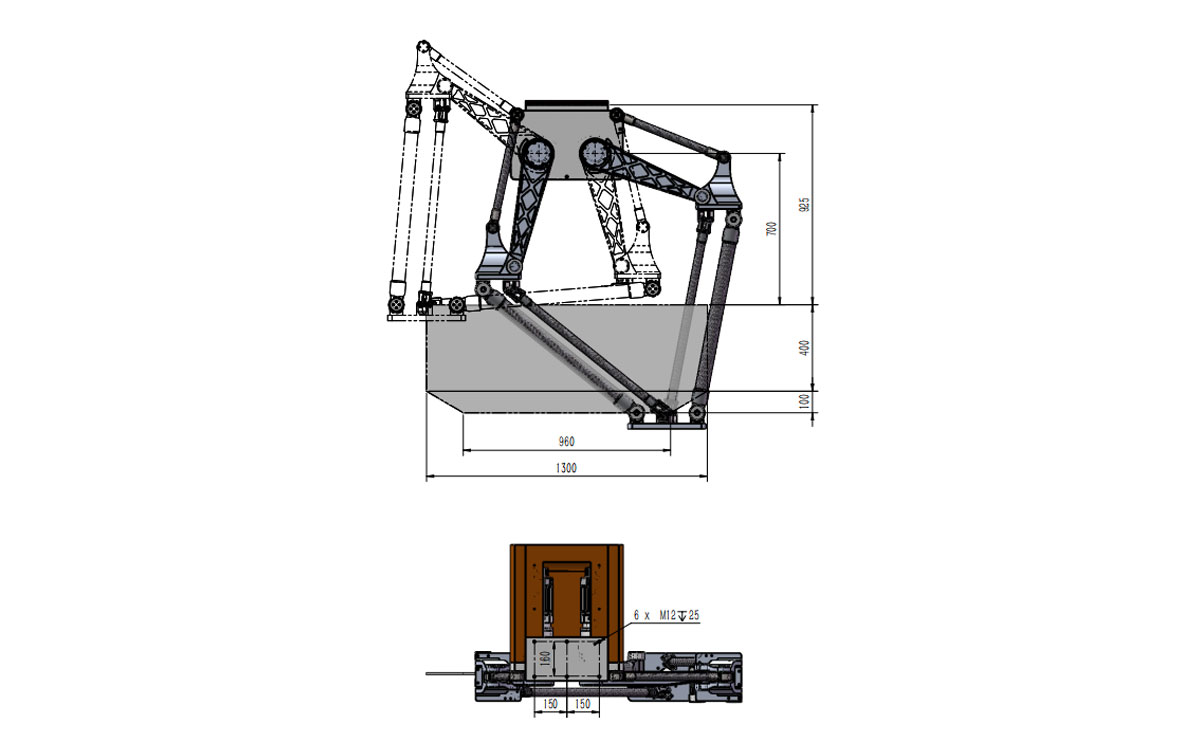

Technical Drawing of BAT1300B-S50 Heavy Load Delta Robot

Technical Drawing of BAT1300B-S50 Heavy Load Delta Robot
