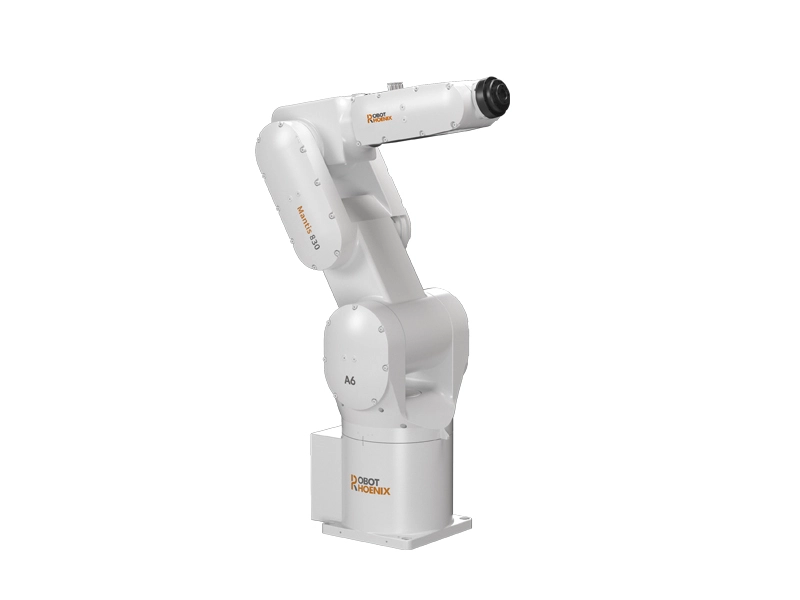

Name: Mantis830-A6 6-Axis Robot
Brand: Robotphoenix LLC

Mantis series 830-A6 six-axis robot has a rated payload of 6kg. The six industrial robot is developed for complex applications with multiple degrees of freedom. It has graphical operation functions and is simple to program and use.

Specification of Mantis830-A6 6-Axis Robot

Robot Model	Mantis830-A6
Load	6kg
Working Radius	830mm
Number of Axles	6
Motion	Axial Motion	Scope of Work	Maximum Speed
	A1 Joint: Rotation of the First Mechanical Arm	-175°-+175°	288°/s
	A2 Joint: Swing of the Second Mechanical Arm -123°-+97°	-90°-+126°	240°/s
	A3 Joint: Swing of the Third Mechanical Arm -66°-+201°	-201°-+66°	415°/s
	A4 Joint: Rotation of the Fourth Mechanical Arm	-180°-+180°	421°/s
	A5 Joint: Swing of the Wrist Component -118°-+118°	-120°-+120°	487.5°/s
	A6 Joint: Clamp End Rotation	-360°-+360°	765°/s
Integrated Signal Source	12 Signals Are Set at the Wrist
Integrated Air Supply	4-way Air (5bar) is Set at Wrist
Repetitive Positioning Accuracy	0.02mm
Robot Installation	Table/Ceiling mounting
Degree of Protection	IP54
Dimensions of Robot Base	250mm×250mm
Robot Height	1343.5mm
Weight	59kg

Features of Mantis830-A6 Six Axis Industrial Robot

Payload is 6kg
Working radius is 830mm
6 axes
Protection grade IP54

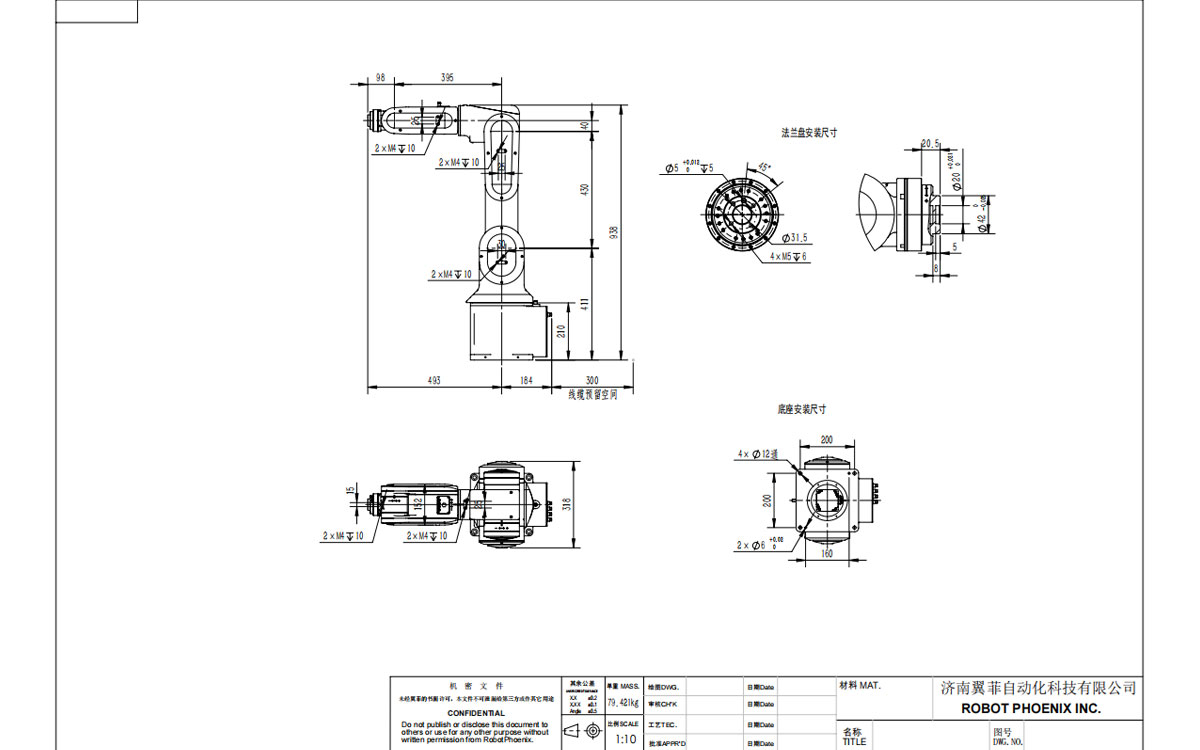

Technical Drawing of Mantis830-A6 6-Axis Robot
