BAT1600-S6 Delta Robot

Get A Quote

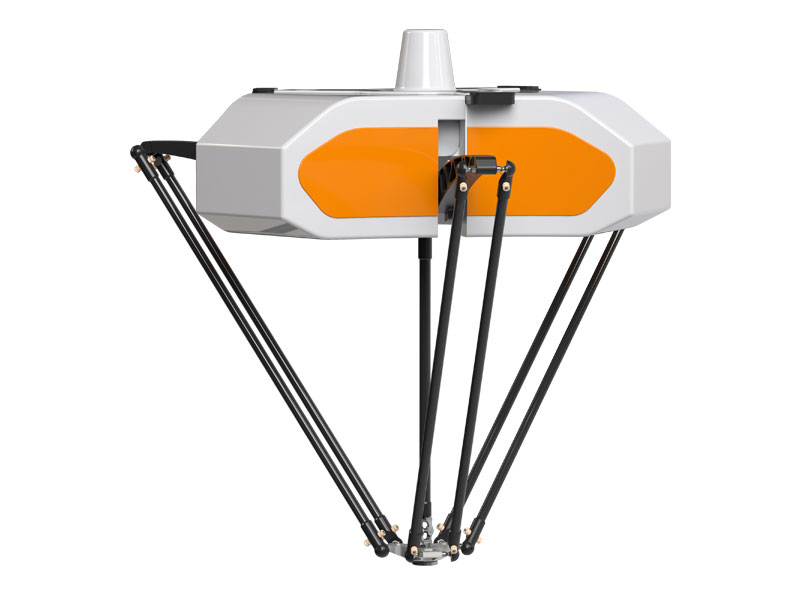

parallel delta robot

Bat1600-S6 delta robot is a 4-axis parallel robot with a rated payload of 6kg, which has the characteristics of high speed and precision, small footprint and strong rated power. It contributes to a flexible production during high precision and high speed manufacturing lines.

Specification of BAT1600-S6 Delta Robot


Robot ModelBAT1600-S6
Rated Load6kg
Working Space Diameter1600mm
Number of Axles4
Repeated Positioning Accuracy0.1mm
Repeated Positioning Accuracy of four Axis Angle (°)0.2°
Maximum Speed10m/s
Power Supply VoltageAC380V±10％, 50/60HZ
Rated Power4.7kW
Protection GradeIP54
Weight190kg


Robots

Features of BAT1600-S6 Parallel Delta Robot

  • The maximum payload is 6kg

  • The working space diameter is 1600mm

  • The repositioning accuracy is 0.1mm

  • The maximum speed is 10m/s

  • The rated power is 4.6kW

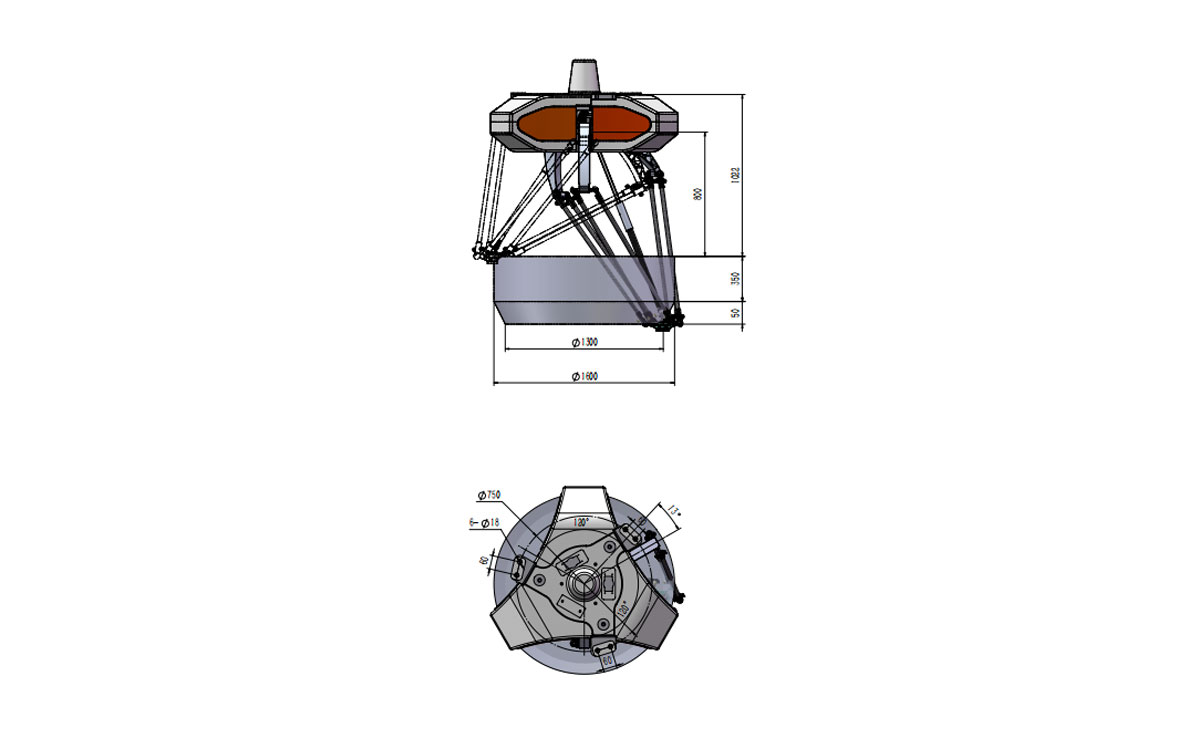

Technical Drawing of BAT1600-S6 Delta Robot

Technical Drawing of BAT1600-S6 Delta Robot
