Name: Python550-B6 SCARA Robot
Brand: Robotphoenix LLC

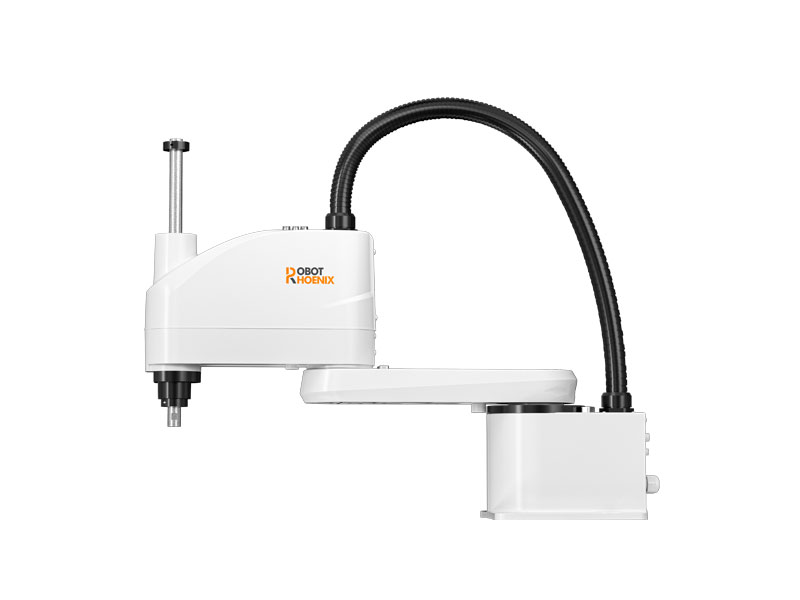

Python550-B6 SCARA Robot is a 4-axis robot with a maximum payload of 6kg. This SCARA type robot has superior precision, speed, linearity and verticality performance. It can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.

Specification of Python550-B6 SCARA Robot

Robot Model	Python550-B6
Maximum Operating Speed	Joint 1 and 2	7400mm/s
	Joint 3	1100mm/s
	Joint 4	2360°/s
Repeated Positioning Accuracy	Joint 1 and 2	±0.02mm
	Joint 3	±0.01mm
	Joint 4	±0.01°
Load	Rated	3kg
Load	Maximum	6kg
Measure	Installation Hole Diameter	172×140mm; 4- φ12
Measure	Z-axis Diameter	20mm
Weight	25kg (excluding cable)
Installation Type	Table Installation
Interface	I/O Interface
	Ethernet	2
	USB	2
	Ethercat	1
	RS232/RS485	1

Features of Python550-B6 SCARA Type Robot

Payload is 6kg
Working diameter is 1100mm
Floor mounting
Protection grade IP54

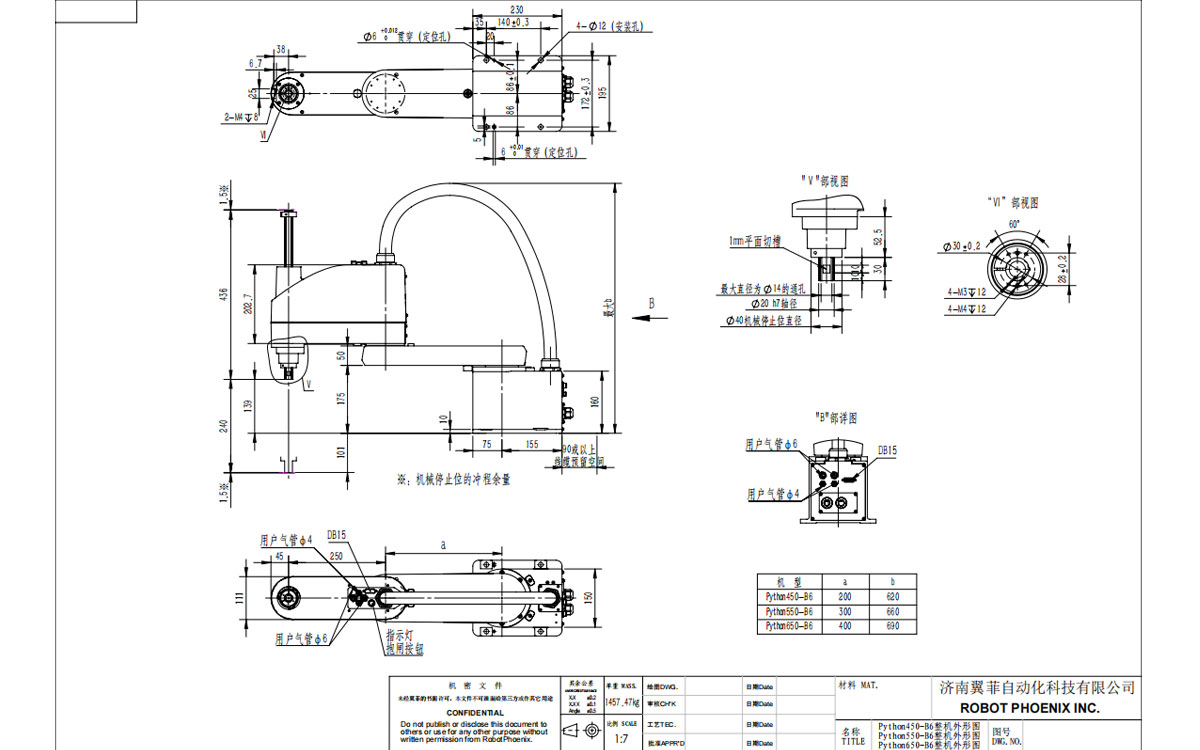

Technical Drawing of Python550-B6 SCARA Robot
