Kingkong Controller Vision Function

YiVision internal vision module

Integrated with a vision system, it can automatically trigger the camera to capture images and perform image processing without the need for third-party vision software. The recognized object information is automatically added to the robot’s object list. Combined with process instructions, users can quickly achieve integrated applications of vision and robotics.

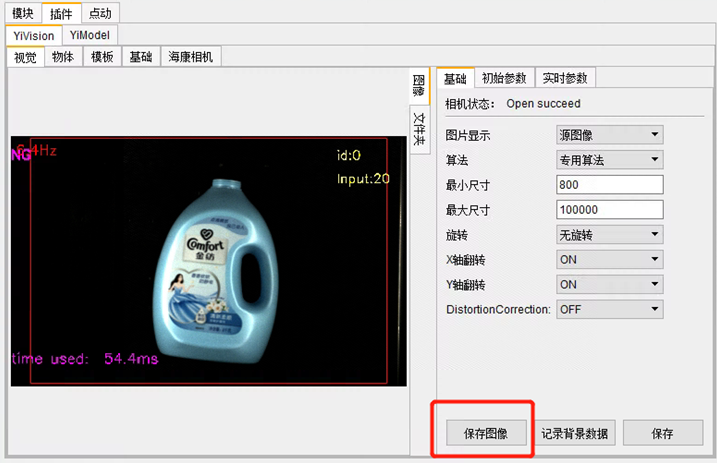

Built-in vision

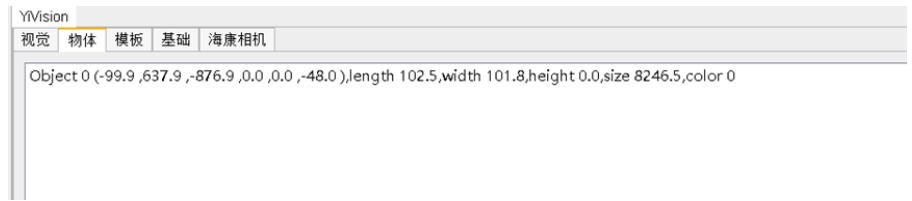

Object information

YiExVision External Vision Module

The difference from the internal vision module is that image processing is carried out by a third-party vision platform. Communication with the vision platform is performed through Socket, making it easier for users to integrate third-party vision with the robot. It is compatible with Wingfi’s self-developed VisionPower platform, as well as third-party vision software such as Hikvision VisionMaster.

Vision power

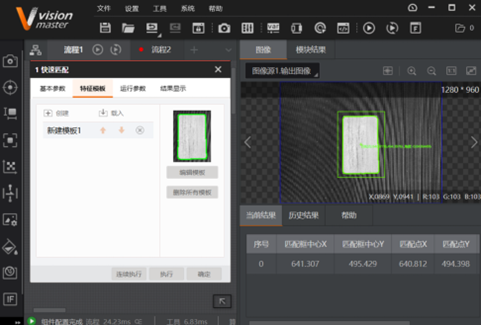

Vision master

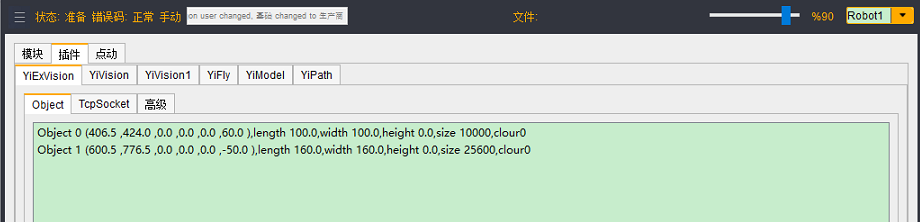

Object information

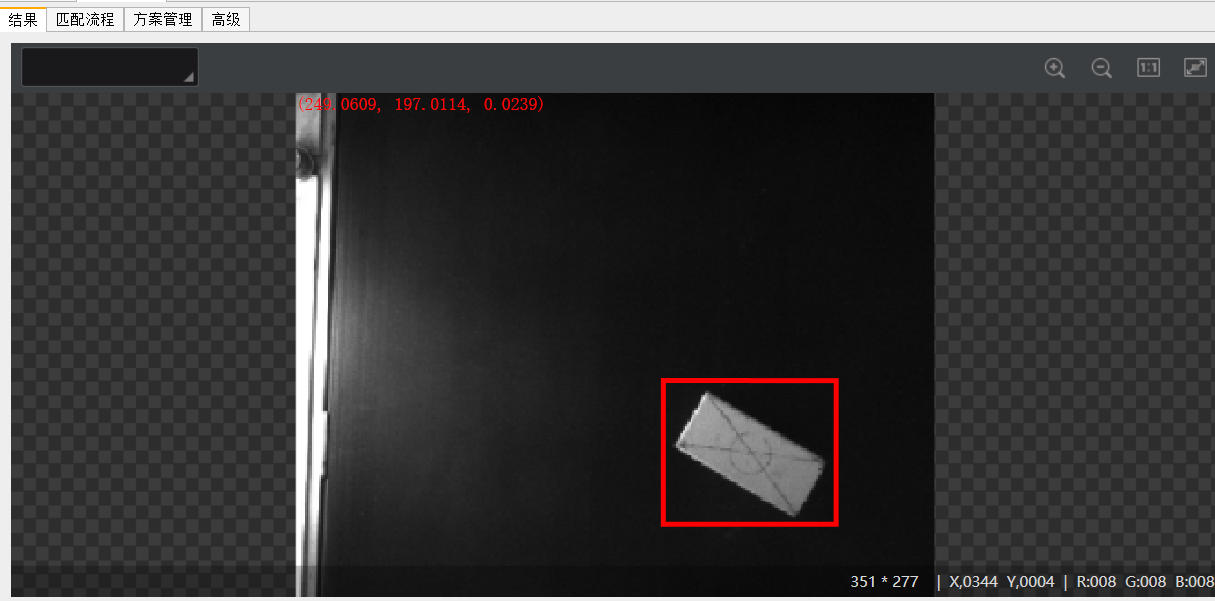

YiVMVision VM Vision Module

Integrated with VisionMaster’s vision functions and robot control in one system, it provides dual driver versions to meet visual requirements ranging from simple to complex.

3.1 Basic Version: Ultra-simple configuration for rapid deployment.

· No-code Operation: No prior vision experience required; complete vision task configuration in 3 steps using material templates.

· Plug-and-Play: Supports mainstream industrial cameras and devices, with system deployment completed in 30 minutes.

3.2 Advanced Version: Fully customizable for complete control.

·  Fully Customizable Workflow: Open algorithm library (positioning, measurement, OCR, etc.) with drag-and-drop process design.

·  Tackling Complex Scenarios: Multi-camera collaboration and high-precision inspection to handle demanding industrial environments.
