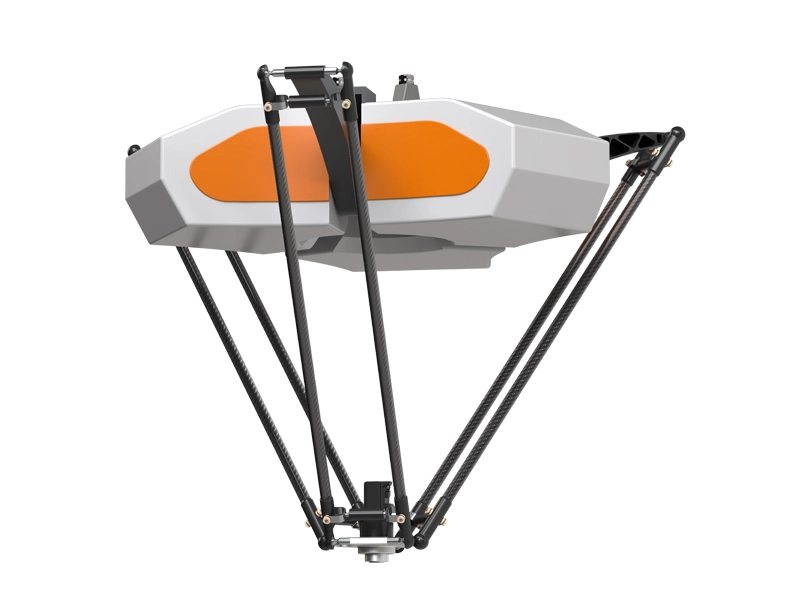

Name: BAT2000M-S15 Delta Robot
Brand: Robotphoenix LLC

This high speed delta robot has the strong power and the superior operational efficiency of agile with high speed. The high positioning accuracy is up to 0.1mm and the strong load capacity can reach 15kg. These contributes to a high-speed and high-precision flexible production of our high speed delta robot.

Specification of BAT2000M-S15 Delta Robot

Robot Model	Bat2000M-S15
Maximum Load	15kg
Working Space Diameter	2000mm
Number of Axles	4
Repeated Positioning Accuracy	0.1mm
Repeated Positioning Accuracy of four Axis Angle (°)	0.05
Maximum Speed	10m/s
Maximum Acceleration	150m/s²
Power Supply Voltage	three-phase AC380V ± 10%, 50/60HZ
Rated Power	6kW
Ambient Temperature	0-45℃
Safety	has monitoring, emergency stop and safety functions
Weight	255kg
Protection Grade	IP54

Features of BAT2000M-S15 High Speed Delta Robot

Load: 15kg
Diameter of working space: 2000mm
Re-positioning accuracy: 0.1mm
Number of axes: 4

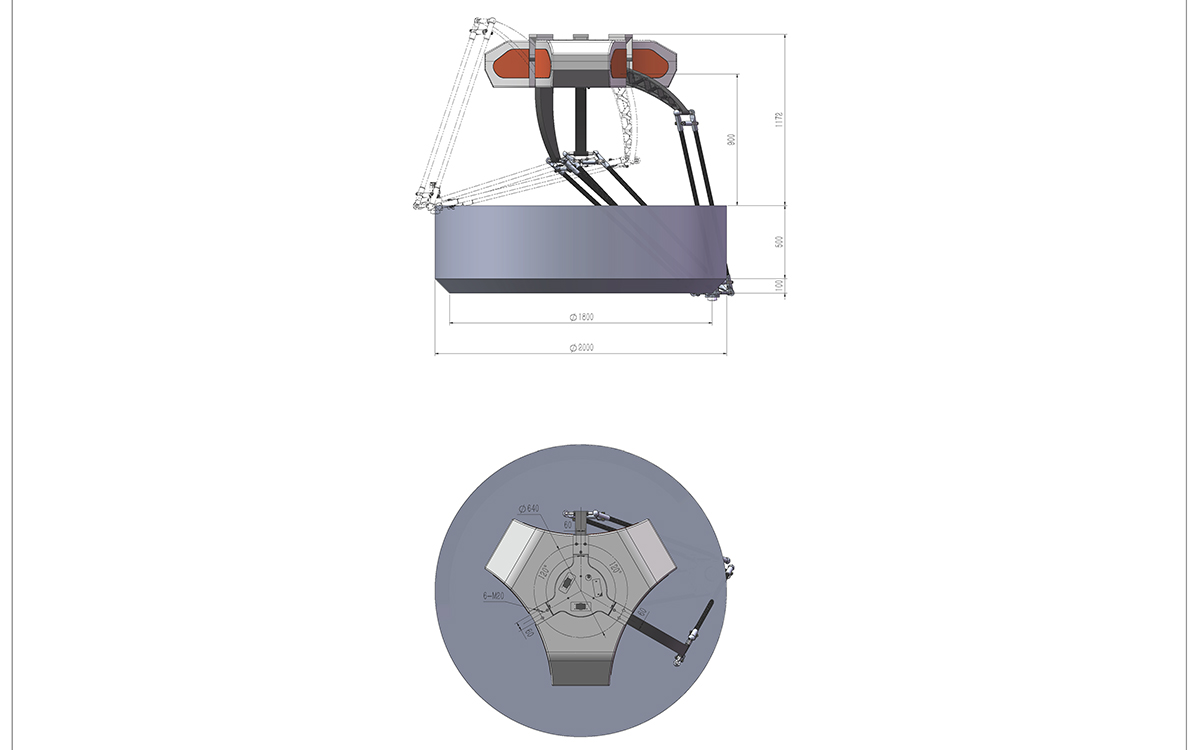

Technical Drawing of BAT2000M-S15 Delta Robot
