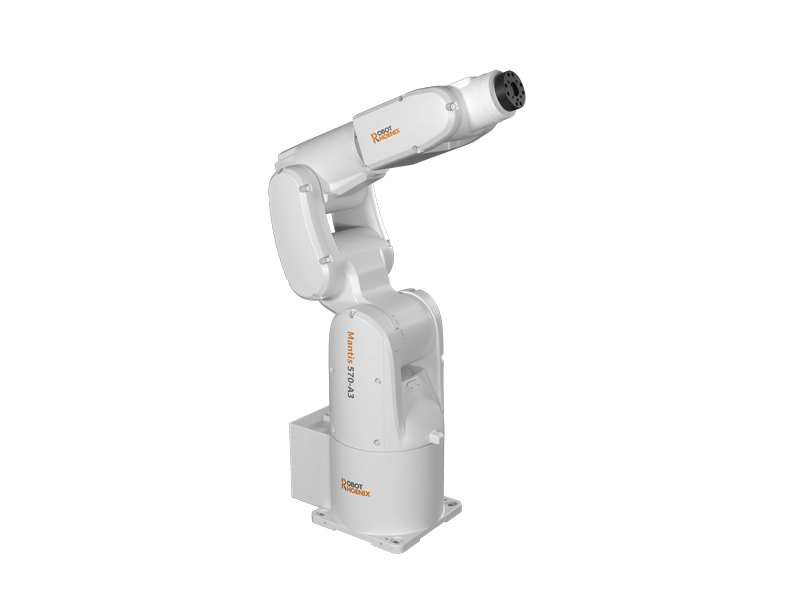

Name: Mantis570-A3 6-Axis Robot
Brand: Robotphoenix LLC

Mantis series 570-A3 six-axis robot has a rated payload of 3kg. The 6 axis industrial robot is developed for complex applications with multiple degrees of freedom. It has graphical operation functions and is simple to program and use.

Specification of Mantis570-A3 6-Axis Robot

Robot Model	Mantis570-A3
Load	3kg
Working Radius	570mm
Number of Axles	6
Motion	Axial Motion	Scope of Work	Maximum Speed
	A1 Joint: Rotation of the First Mechanical Arm	-165°-+165°	407°/s
	A2 Joint: Swing of the Second Mechanical Arm -130°-+103°	-110°-+110°	407°/s
	A3 Joint: Swing of the Third Mechanical Arm -53°-+108°	-80°-+72°	444°/s
	A4 Joint: Rotation of the Fourth Mechanical Arm	-160°-+160°	444°/s
	A5 Joint: Swing of the Wrist Component -104°-+104°	-110°-+110°	487°/s
	A6 Joint: Clamp End Rotation	-400°-+400°	780°/s
Integrated Signal Source	12 Signals Are Set at the Wrist
Integrated Air Supply	4-way Air (5bar) is Set at Wrist
Repetitive Positioning Accuracy	0.02mm
Robot Installation	Table/Ceiling mounting
Degree of Protection	IP54
Dimensions of Robot Base	95mm×195mm
Robot Height	1003mm
Weight	32kg

Features of Mantis570-A3 6 Axis Industrial Robot

Payload is 3kg
Working radius is 570mm
6 axes
Protection grade IP54

Technical Drawing of Mantis570-A3 6-Axis Robot
