Teach Pendant

Get A Quote
robotic machinery

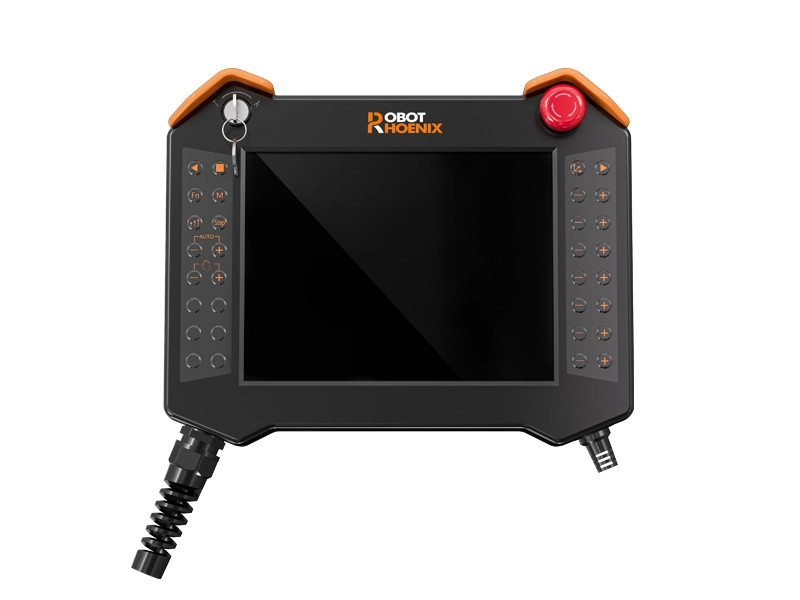

Cobra teach pendant is a robotic human-computer interaction terminal independently developed by Robotphoenix, based on VNC remote display and Modbus technology. The product can be fully adapted to Robotphoenix's robot control system of its delta robots, SCARA robots, 6-axis robots and wafer handling robots, and can be uniformly adapted to any Windows-based controller or Linux controller (with display). It has a forced stop button independent of the system and the control ability for one machine to control multiple machines, which can improve the safety performance level of the robot and reduce the operating cost of the robotic machinery.

Specification of Teach Pendant



Specification

Cobra-01SS-L9X7

Cobra-02DE-L9X7

Overall dimensions

304mm*238mm*87mm

Screen

9.7-inch touch screen; screen resolution 1024*768

Processor


2 cores

RAM


1 G

Flash


4 G

Communication

UART Serial port communication

100M cable

Circular Connector

30 pins

17 pins

Panel

Mode switch, Emergency stop switch, Enable switch

Rated voltage

24V




Specifications

Overall dimensions

304mm*238mm*87mm

Screen

9.7-inch touch screen; screen resolution 1024*768

Processor

4 cores (Support upgrading)/2 cores

RAM

2G (corresponding to 4 cores CPU) / 1G (corresponding to 2 cores CPU)

Flash

8G (corresponding to 4 cores CPU) / 4G (corresponding to 2 cores CPU)

Communication

100M cable

Panel

Mode switch, Emergency stop switch, Enable switch

Power

Rated voltage:24V

Operating temperature

5℃- 40℃

Storage temperature

-30℃- 80℃

Relative humidity of the operating environment

10%-80% (no condensation)




Features of Teach Pendant

  • Machine control system integrates command editing, visual calibration, module matching and visual parameter setting, conveyor belt calibration and other functions.

  • The machine of Robotphoenix can realize the operation and configuration of the machine, vision, etc, without the need for other auxiliary tools.
