Python450-B6 SCARA Robot

Get A Quote
scara industrial robots

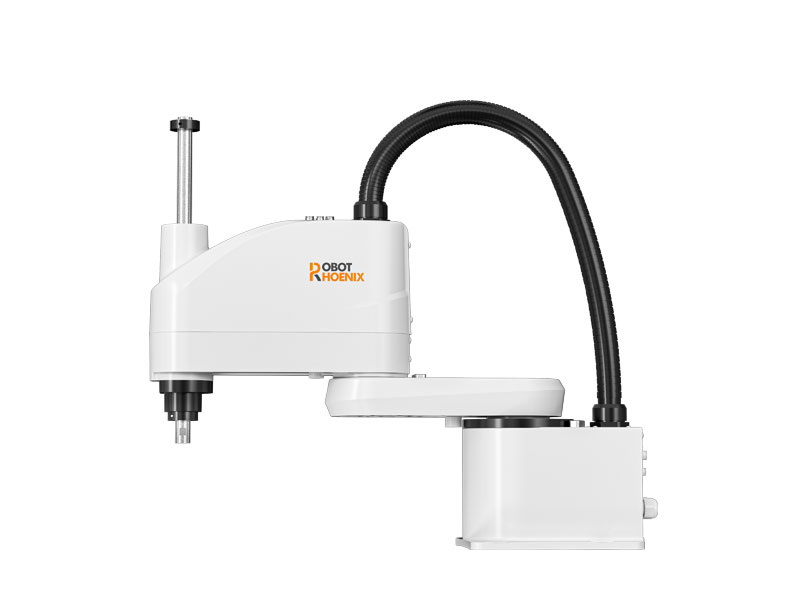

Python 450-B6 SCARA Robot is a 4-axis robot with a rated payload of 6kg. This type of SCARA industrial robots has superior precision, speed, linearity and verticality performance. This small scara robot can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.

Specification of Python450-B6 SCARA Robot


Robot ModelPython450-B6
Maximum Operating SpeedJoint 1 and 26600mm/s
Joint 31100mm/s
Joint 42360°/s
Repeated Positioning AccuracyJoint 1 and 2±0.02mm
Joint 3±0.01mm
Joint 4±0.01°
LoadRated3kg
Maximum6kg
MeasureInstallation Hole Diameter172*140mm; 4-12
Z-axis Diameter20mm
Weight24kg
Installation TypeTable Installation
InterfaceI/O Interface
Ethernet2
USB1
Ethercat1
RS232/RS4851


Features of Python450-B6 SCARA Industrial Robots

  • Payload is 6kg

  • Working diameter is 900mm

  • Floor mounting

  • Protection grade IP54

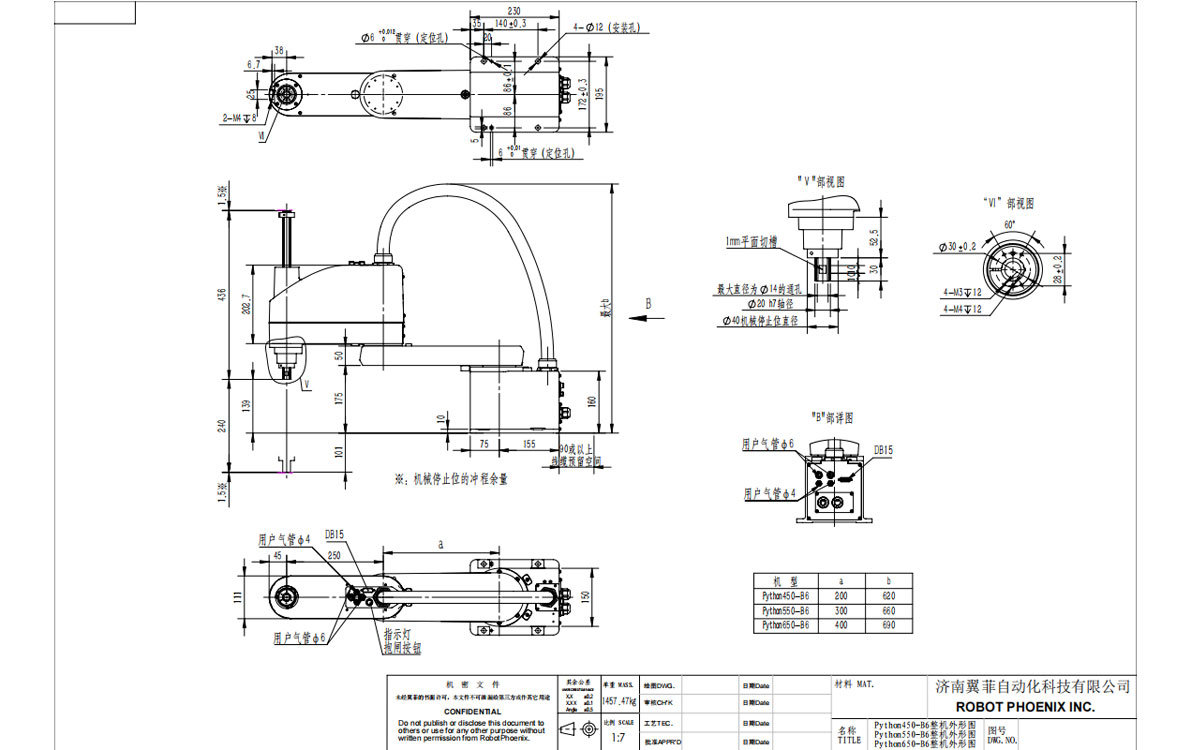

Technical Drawing of Python450-B6 SCARA Robot

Technical Drawing of Python450-B6 SCARA Robot
