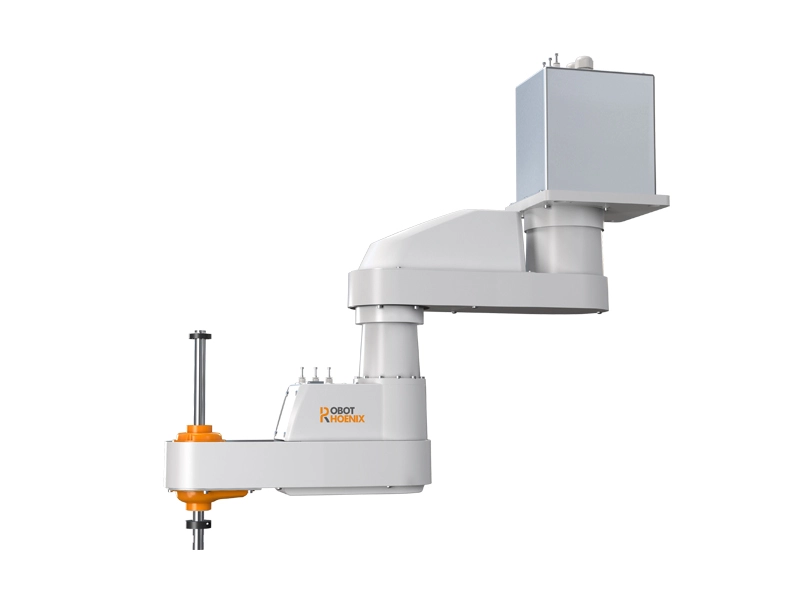

Name: Python550F-B3 SCARA Robot
Brand: Robotphoenix LLC

Python 550F-B3 SCARA Robot is a 4-axis robot with a maximum payload of 3kg. It has superior precision, speed, linearity and verticality performance. It can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.

Specification of Python550F-B3 SCARA Robot

Robot Model	Python550F-B3
Maximum Operating Speed	Joint 1 and 2	7400mm/s
	Joint 3	1100mm/s
	Joint 4	2600°/s
Repeated Positioning Accuracy	Joint 1 and 2	±0.02mm
	Joint 3	±0.01mm
	Joint 4	±0.01°
Load	Rated	1kg
Load	Maximum	3kg
Measure	Installation Hole Diameter	150×160mm; 4-φ11
Measure	Z-axis Diameter	16mm
Weight	20kg (excluding cable, body frame)
Installation Type	Ceiling installation
Interface	I/O Interface
	Ethernet	2
	USB	2
	Ethercat	1
	RS232/RS485	1

Features of Python550F-B3 SCARA Robot

Payload is 3kg
Working diameter is 1100mm
Ceiling mounting
Protection grade IP54

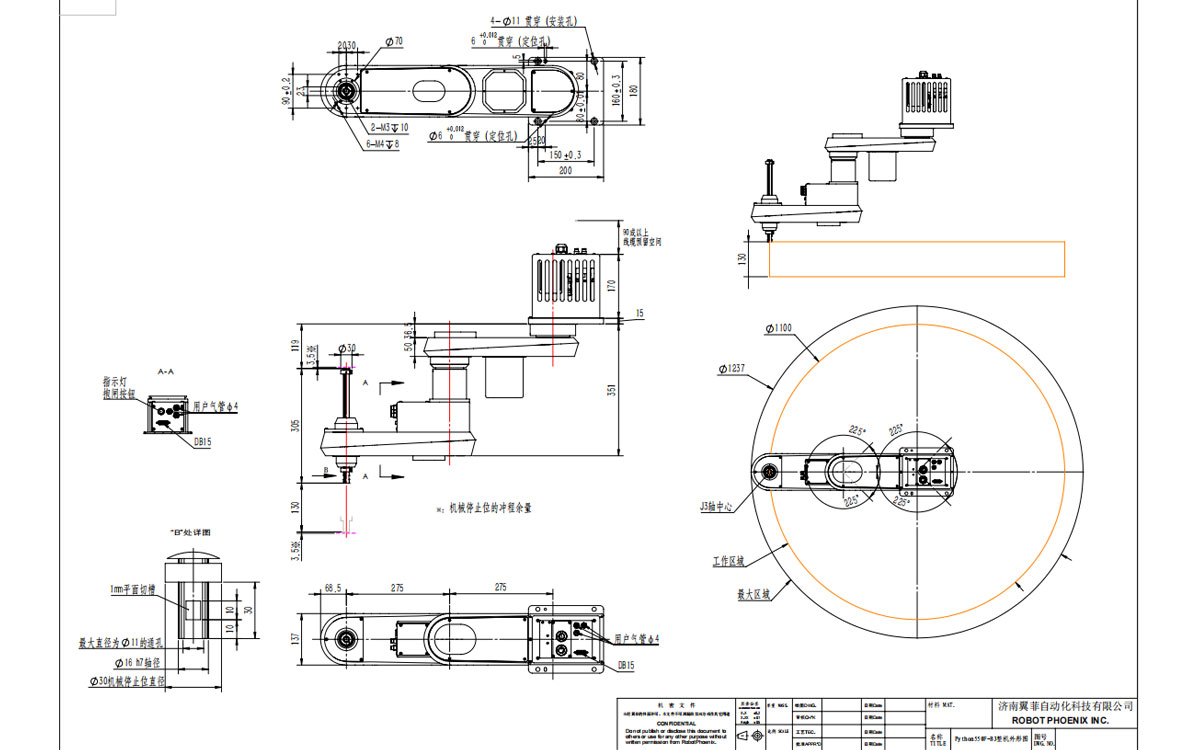

Technical Drawing of Python550F-B3 SCARA Robot
